This and Example #38 use the SR 4 Brackets we first saw on Porch Example #6. Here the Post Face Brackets extend well beyond the bottoms of the SR 4 Brackets, while the Post Face Brackets on the next Example end just below the SR 4. Either is fine. Which do you prefer?

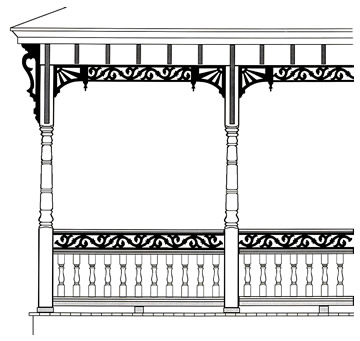

Porch Example #37
Item	SKU	Description
Porch Post	T608n32	Traditional 6"x96", with 32" base, 6' on center
Post Face Bracket	1132	31" Cupid's Key, 1-1/2" thick
Repeating Cornice Bracket	1553	Bradie Bracket, 12" on center
Spandrel	4132	6-1/2" Wisteria Spandrel (also used below P3 rail)
Bracket	1174	SR 4 Bracket, with Drop attached
Beaded Rail	n/a	1-1/2"x2-1/2", discontinued
Baluster	SM-T318-H	Traditional Baluster, 3"x18", 6" on center
Handrail	201-070	P-3 Rail, with SR3 Subrail (56-020)
Bottom Rail	5606	Sloped-top Bottom Rail, shown with Kickspace Block.

We are available by phone or email for free personalized consultation.
