Cap 5452n7 (7-1/2" tall)

# 5452n7 (caf)


This Cap size is standard with 4-1/2" Block Design 6 and Casing Design 74, as shown, and fits 4" wide door or window Casing. Cap 5452n8 fits 5" wide Casings. Different Casing and/or Block designs can be specified below.


Overall height is 7-1/2". Each Door & Window Cap is made with "returned" ends; that is, the Moulding profiles continue on each end.

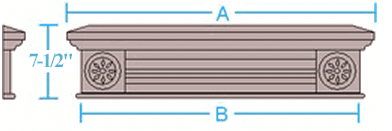

When installed, the square Blocks at either end of the Cap should center on vertical Casing on either side of your window or door. (Study Casing & Block Installation Overview and 5452 Usage Photo). Also, Blocks should be 1/2" wider than the Casing below them. Therefore, length B (see drawing above) should be 1/2" more than the overall width to outside edges of your vertical window or door Casing.

Length A is 2-5/8" more than B. When ordering, please specify overall length A. Example: If overall width to outside edges of window or door Casing is 36", length A will be 36" + 1/2" + 2-5/8" = 39-1/8".

Caps are shipped fully assembled but individual components can be ordered separately. If you buy individual components you must miter the mouldings' ends and order special-sized, square-edged Casing.
Cap 54-220 (top piece)
Cap 54-232 (second piece)
Block Design 6 (standard)
Casing Design 74 (standard)
1/2" Bull Nose 54-270 (bottom)

SALE LISTINGS - Items listed below are 75% off!
Online price cannot calculate the Sale discount, but your final invoice WILL show the discount. If your order exceeds the available Sale quantity listed below, extras will be at our regular price.
30" long. Pine. 1 available
68-1/4" long. Oak. 1 available
91-5/8" long. Oak. 1 available
