On this example and the next few we'll vary the Post spacing. Most of the examples have Posts that are 6 feet on center, but here we find a very tight 4 feet from center to center and it looks very nice.

If you're not sure of your Porch Post spacing you may want to nail some scrap lumber up to represent Posts and experiment with different spacings on your actual porch.

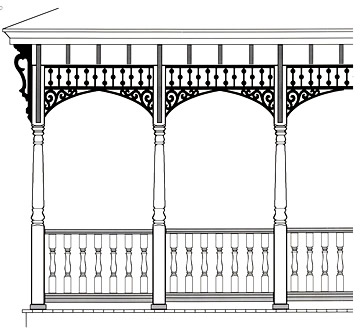

Porch Example 2
Item	SKU	Description
Porch Post	T508n32	Traditional 5"x96", with 32" base
Post Face Bracket	1132	31" Cupid's Key, 1-1/2" thick
Repeating Cornice Bracket	1553	Bradie Bracket, 12" on center
Spandrel	4117	8-3/4" Ball & Dowel Spandrel
Bracket	1247	The Arch Bracket, shortened, unframed
Baluster	MS-CL324-H	MS-Traditional Baluster-A, 3"x24", 6" on center
Handrail	201-070	P-3 Rail, with SR3 Subrail (56-020)
Bottom Rail	5606	Sloped-top Bottom Rail, shown with Kickspace Block.

We are available by phone or email for free personalized consultation.
