Our Round Fiberglass Columns are cast from a proprietary fiber-reinforced polymer composite with an exceptional strength-to-weight ratio. Far superior to standard fiberglass columns, they cost about the same! Astragal Moulding Detail

Why choose our columns?

• Weatherproof

• Insect Proof

• Highly Durable

• Minimal Maintenance

• High Load Ratings

• Limited Lifetime Warranty

• Installation Instructions

• Proper Entasis (taper)

Lower one third of column shaft is straight. Upper two thirds has a slightly convex curving taper. This creates a traditional, architecturally correct entasis (taper) and a most pleasing appearance. This entasis is typical of round columns. Astragal moulding (Bead near top of column) is moulded into the shaft. Quantity discounts available.

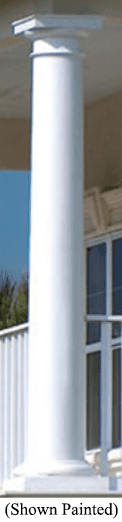

Tuscan Style Cap and Base (shown at left) are non-structural sleeves. Column extends through Cap and Base. You can order the correct Cap and Base from dropdown below.
Tuscan Cap and Base Set includes free Flashing Cap and Column Installation Kit.

Cap and Base dimensions are not included in the table below.

Column Size	Bottom Diameter	Non Tapered Area	Tapered Area	Astragal	Tapered Area above Astragal	Neck Diameter
8" x 96"	7-5/8"	32"	58-3/4"	3/4"	4-1/2"	6-1/4"
8" x 120"	7-5/8"	40"	74-3/4"	3/4"	4-1/2"	6-1/4"
10" x 96"	9-5/8"	32"	58-1/4"	3/4"	5"	8-1/8"
10" x 120"	9-5/8"	40"	74-1/4"	3/4"	5"	8-1/8"
10" x 144"	9-5/8"	48"	90-1/4"	3/4"	5"	8-1/8"
12" x 96"	11-5/8"	32"	57-9/16"	13/16"	5-3/4"	9-3/8"
12" x 120"	11-5/8"	40"	73-9/16"	13/16"	5-3/4"	9-3/8"
12" x 144"	11-5/8"	48"	89-9/16"	13/16"	5-3/4"	9-3/8"

Dimensions may vary up to 1/4".
Please inquire for additional sizes and lengths.
