Determining Your Roof Pitch
Roof Pitch is defined as the number of feet the roof rises vertically for each 12 feet of horizontal measure. All of our Gable Decorations except 4208 can be slightly modified by us to fit most roof pitches. We do this at no additional charge.
Close estimate of roof pitch OK for most designs
To insure proper fit, we need to know the pitch of your roof at the gable. However, all designs except 4208 and 4210 permit some adjustment during installation. Therefore, a close estimate of your gable roof pitch will suffice for all except 4208 and 4210. There are two easy methods to determine roof pitch:
Method 1 - using our Pitch Guide (Does NOT require ladder!)
1. Print a Pitch Guide

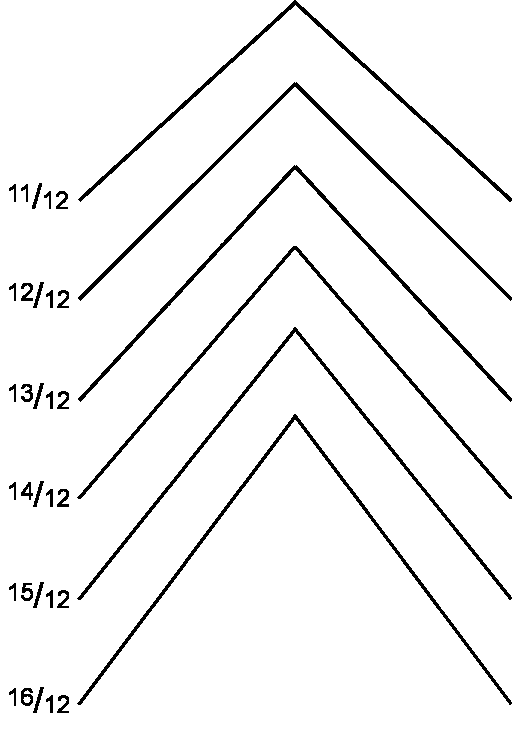

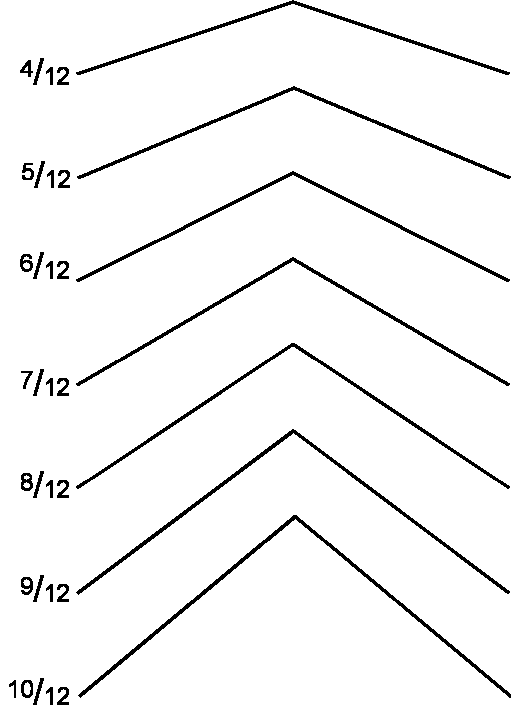

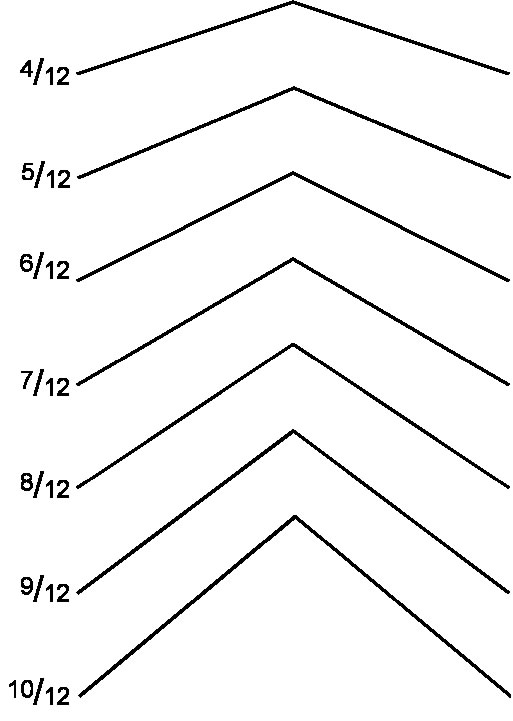

Determine which set of pitch guides below best matches your roof line. Click on the chosen image to enlarge the drawing and then print it. (You may want to print both if the slope of your roof appears to be near 10/12 or 12/12.)
2. View Your Gable From a Distance
With printed drawing in hand, and at some distance from the actual gable, try to position yourself directly in front of the gable. (This may be a second floor window of your neighbors home!) If you're not able to get high enough, that's ok as long as you're directly in front of your gable. With printed pitch guide at arm's length, select the pitch lines that closest match your gable's roof pitch.
3. Cut Along Selected Pitch Lines
Cut along the edge of the selected pitch lines. From your vantage point, see if you can visually fit this 'peak' into the actual peak of your gable roof.
4. Order That Pitch
If the cut pitch guide matches the slope of your gable roof, then the numbers on the left side indicate the pitch of your roof. If you cannot perfectly match your actual gable that's ok for all of our designs except 4208 and 4210.
Method 2 - horizontal measurement
1. Starting at the peak of your gable roof, measure down 36" along each side of your gable and make a mark.
2. Using a metal measuring tape, measure the distance horizontally (across) from mark to mark. Use the online Roof Pitch/closest Horizontal Measurement pop-down at your chosen Gable Decoration listing to indicate your Horizontal Measurement for each gable you're ordering. We'll take it from there!
Please contact us if you need assistance. We're always eager to help!
