Both Porch Example #11 and 12 show Running Trim used as Applique, but Porch Example #12 additionally illustrates the use of Running Trim between Repeating Cornice Brackets.

Here we've used a smaller 10" (12" including frame) size of Footed Crescent Bracket. However, the next larger size (#1111n15) would strengthen the arch effect these curved Brackets provide. See Porch Example #10 and notice the increased effectiveness the larger Cupid's Arrow Brackets gave to Porch Example #10.

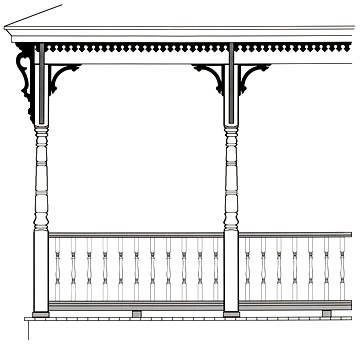

Porch Example #11
Item	SKU	Description
Porch Post	T608n32	Traditional 6"x96", with 32" base, 6' on center
Post Face Bracket	1132	31" Cupid's Key, 1-1/2" thick
Applique	2225	Arrowhead Running Trim
Bracket	1111n10	Footed Crescent, 12" size, framed
Baluster	SM-T224-H	Traditional Baluster, 2"x24", 6" on center
Handrail	201-135	P-2 Rail, with SR2 Subrail (56-010)
Bottom Rail	5606	Sloped-top Bottom Rail, shown with Kickspace Block.

We are available by phone or email for free personalized consultation.
